SEM for Concrete Durability: If you’ve ever stared at cracked concrete and thought, “That shouldn’t be happening,” you’re not alone. Whether it’s a slab, a column, or a wall — concrete fails. And sometimes, the usual tests don’t give you enough of the why. That’s where SEM comes in.
SEM, or Scanning Electron Microscopy, isn’t your everyday lab test. It’s not like the compression test, or even RCPT. It’s more like putting your concrete under a microscope but not just any microscope. We’re talking about a machine that lets you zoom in on cement paste, air voids, fly ash particles, or the exact spot where a crack decided to start.
Now, does that mean everyone should be using SEM? Definitely not. But when durability matters — and I mean really matters — this tool can tell you things that no slump test ever could.
What Exactly Are You Looking At?
Let’s skip the textbook talk for a second. SEM fires a beam of electrons at your sample, and those electrons hit atoms in the concrete. What bounces back gets picked up and turned into a detailed image.

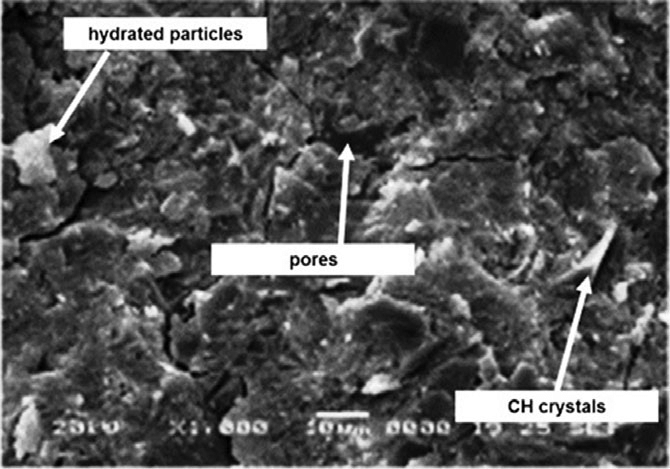

These aren’t Instagram-level photos — they’re raw, black and white, ultra-zoomed-in shots of your concrete’s surface. You’ll see needle-like ettringite crystals. You’ll see flaky calcium hydroxide. You might see microcracks creeping through the paste like spider webs.

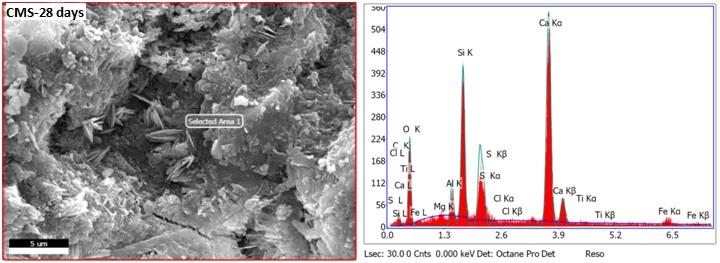

And it’s not just about “seeing.” With EDS (Energy Dispersive X-ray Spectroscopy), SEM can also tell you what elements are in those cracks or voids. Calcium? Sulfur? Sodium? You get a full breakdown.
This is the stuff that separates “I think the mix failed” from “Here’s exactly why it failed.”
Why Do We Even Use SEM in Concrete?
Simple: Because concrete lies.
It’ll look great on the surface, pass strength tests, even make the inspector smile — and then boom, a year later, cracks show up, or rebar starts rusting, or water stains crawl up the basement wall.
SEM helps you dig deeper. Literally.
You use it to:
-
Look at how your cement paste is forming
-
Spot voids or gaps at the aggregate interface (hello, ITZ!)
-
Check for signs of sulfate attack
-
See how well SCMs (like slag or fly ash) are blending into the matrix
-
Confirm whether a weird reaction (ASR, delayed ettringite, etc.) is actually happening
It’s like putting your concrete under interrogation lights and asking, “What aren’t you telling me?”
Where SEM Really Shines
🔍 The ITZ (Interfacial Transition Zone)
If you’ve heard about the ITZ, you probably know it’s often the weakest part of the concrete. It’s where the cement paste wraps around the aggregate. SEM can show whether that zone is dense and tight or loose and porous.
When a structure fails early, it’s often the ITZ that gave way. SEM lets you see it for yourself — and maybe even prevent it from happening again.
🧪 Reaction Products
Got ettringite crystals forming where they shouldn’t? SEM sees them. Got a weird gel building up inside the mix? SEM shows you the shape, the size, and what elements are involved.
That’s massive when you’re dealing with issues like sulfate attack, ASR (alkali-silica reaction), or carbonation.
⚡ Fire Damage
SEM can show how cement paste structure changes after exposure to heat. It picks up on microcracks and decomposed compounds long before they’re visible on the surface.
That’s useful for assessing fire-damaged buildings — when you’re trying to figure out what can be saved and what’s toast.
A Quick Note on Sample Prep (It’s a Big Deal)
You can’t just break off a chunk of concrete and throw it under an SEM.
The sample needs to be dried carefully. Otherwise, you’ll introduce fake cracks that weren’t there before. Then, it usually gets coated with gold or carbon, because concrete doesn’t conduct electricity on its own. Without a conductive layer, the electrons go wild and give you fuzzy, useless images.
The best SEM images come from samples that have been carefully sliced, polished, and prepped. Yes, it takes time. But the results are worth it.
Common Uses of Scanning Electron Microscopy SEM in Durability Studies
Here’s a quick rundown of what SEM is often used for in real concrete durability research:
-
Sulfate attack: SEM shows the growth of expansive crystals like ettringite inside paste or voids.
-
ASR: If you suspect ASR, SEM can spot the gel and the cracked aggregate particles it’s coming from.
-
Carbonation: Watch as calcium hydroxide disappears and is replaced by calcium carbonate near the surface.
-
Chloride-induced corrosion: SEM can show rust products around rebar and how far they’ve penetrated.
-
Freeze-thaw damage: You’ll see microcracks forming in paste and ITZ areas long before they affect strength.
One Real-World Example
A concrete tunnel lining in a coastal city started showing signs of surface distress. Nobody could figure it out. It had passed all standard durability tests during construction.
SEM for Concrete Durability showed widespread microcracking in the ITZ and some unexpected sulfate crystal buildup. Turned out, the mix had trace gypsum and got exposed to sulfates from the seawater. That wasn’t in the original exposure class.
Without SEM, it would’ve just been chalked up as a “material failure.” But now, the mix design for future tunnels was adjusted — and the cracks haven’t come back since.
Limitations (Because Nothing’s Perfect)
Let’s not oversell it — SEM isn’t magic.
-
It’s not cheap. Not every lab has one.
-
You’re looking at tiny areas, so the sample has to represent the whole.
-
Bad sample prep = garbage data.
-
It’s slow, especially if you need elemental analysis with EDS.
And you still need to combine SEM results with other tests like RCPT, MIP, or XRD to get the full picture.
Think of SEM as the “zoom lens” in your durability toolkit — not the whole camera.
When Should You Actually Use Scanning Electron Microscopy SEM?
If your structure is failing unexpectedly, if you’re testing new materials, or if you’re doing research and development, SEM is a no-brainer.
But if you’re just doing standard QA for a sidewalk? Probably not worth the hassle.
Here’s when it really earns its keep:
-
Forensic investigations (figuring out why something went wrong)
-
Mix optimization for long-life structures
-
Studying the effect of SCMs like silica fume or metakaolin
-
Evaluating concrete exposed to marine environments
-
Developing concretes for aggressive chemical conditions
Summary
SEM lets you see concrete in a way most people never do. It opens up the hidden world inside the paste and between the particles. It’s slow, it’s technical, and it requires patience — but when you need real answers about why a material is behaving a certain way, it delivers.
If you’re serious about durability, SEM is one of the best ways to stop guessing and start seeing.
Because sometimes, to understand why concrete breaks down, you’ve got to look a whole lot closer.
